High Speed Automatic Paper Cup Forming Machine (140-160 pcs/min, 1-16oz Paper Cup, Coffer Cup Maker, Water Paper Cup Making Machine)
Application
KSJ-160 high speed automatic paper cup forming machine can be used to manufacture all kinds of hot and cold drink paper cups such as coffee cup, cola cup, milky tea cup, ice cream cup, milk cup and other paper containers. The production speed is up to 140~160 pcs/min and the capacity is ranging from 1OZ to 16OZ (29ml to464ml).
H: 40-136h: 3-15D: 40-90d: 30-75
Parameter
Paper cup capacity
1-16 OZ
Paper cup dimension
H: 40-136 h: 3-15 D: 40-90 d: 30-75
Production speed
140-160pcs/min
Weight
5300 kg
Power supply
three-phase 380V
Total power
21KW
Air consumption
0.4cube/min
Dimension of machine
L3750*W1300*H1800mm
Dimension of collecting table
Paper gram weight
210-350gsm(optional)
Paper type
single PE/double PE(optional)
Inspecting equipment
ordered separately
Paper sheet conveyor
ordered separately
Control panel
Display both in Chinese and English
Paper bowl forming process

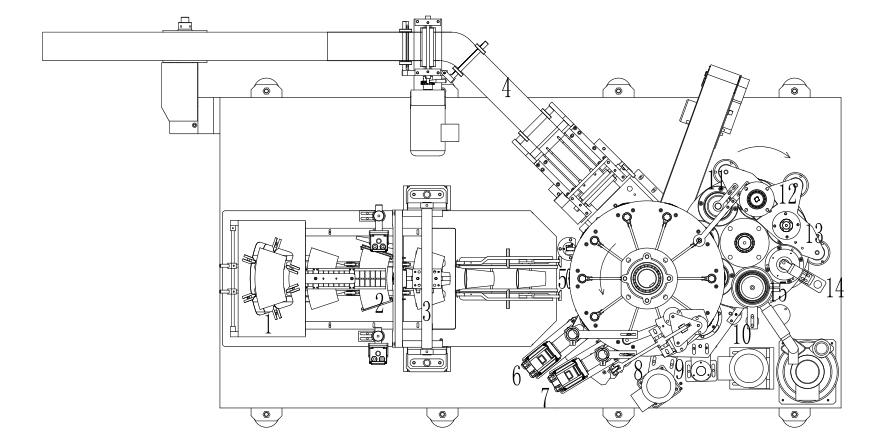

Rolling paper sheetSide seam heating Sidewall paper conglutinating Bottom paper feeding Body cup transferring by transfer arm First bottom preheatingSecond bottom main heating Bottom-cup oil silicon lubrication Bottom curling Bottom of paper cup conglutinating Top-cup oil silicon lubricationKnurling bottom Curling top cup Photo detection Discharge of finished cup

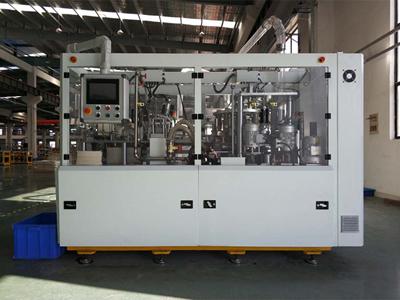

Details of High Speed Automatic Paper Cup Forming Machine

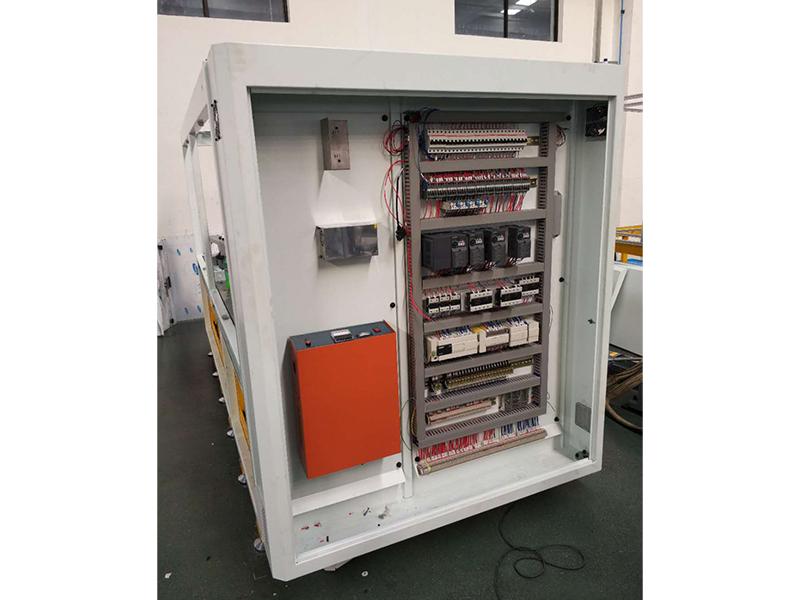

Electric cabinet

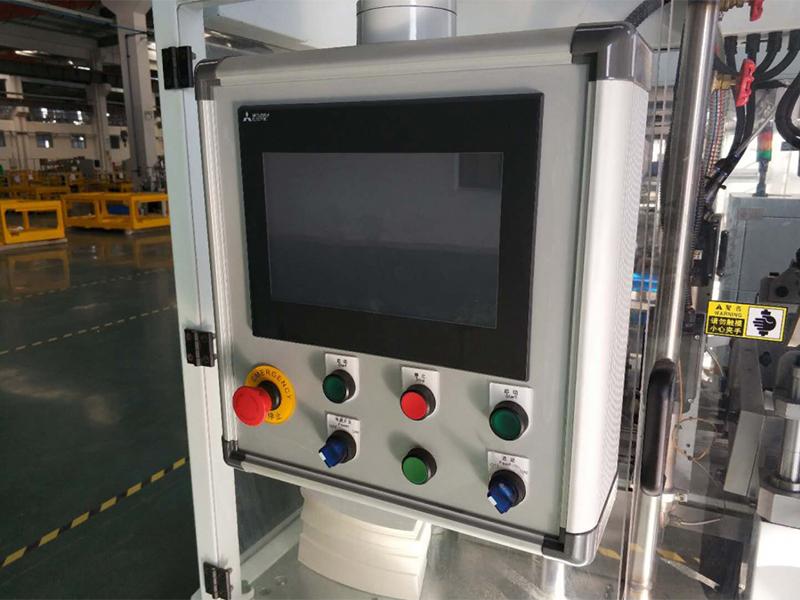

Control panel
Molds
Feature
KSJ-160 high speed paper cup forming machine adopts integral base frame structure, double-column transmission system and automatic circulation lubrication system, which can improve the stability and operation speed of machine greatly.
1. Integral type mould base frame
Generally speaking, many machines adopt non-integral mould base frame, which often results in inadequate precision. Our paper forming machine is designed with integral base frame structure with higher precision and longer service life.
2. Manipulator cup transferring mechanism
We improve traditional free-fall of cup type into three clear steps of cup receiving, overturning and cup lifting, which can largely increase production efficiency and stability of manufacturing process.
3. Gear transmission
The high speed paper cup forming machine adopts gear transmission and is not easy for dislocation, which can lead to more stable continuous production.
4. Open-type indexing box
We adopt open-type indexing box with higher precision and speed and it is also convenient for maintenance.
5. Paper cup bottom heating
Bottom heating before cup curling is an essential procedure. In order to ensure more stable heating process, we adopt Switzerland Leister heater.
6. Oil lubricating system
Disposable paper cup forming machine is controlled by program and can realize timing and quantitative lubricating oil injection ensuring good lubrication conditions in the whole working process.
7. Integral base frame
The paper forming machine is designed with integral frame structure, which is easy for operation and convenient for maintenance.
Dimension diagram
Our company is specialized in manufacturing disposable paper cup/container machines, we are a leading recycle paper container manufacturer, offer paper cup forming machine for coffee cup makers and water paper cup makers, and offer paper dining bowl making machine since 1998, we have made completed lines for making quality disposable paper cup and bowl machines, also we are offering the custom molds to match the machines.
