Middle Speed Automatic Paper Cup Forming Machine (80-120 pcs/min, 1-16oz Paper Cup, Cold Drink Paper Cup Maker, Hot Drink Paper Cup Making Machine)
Application
ZSJ-III middle speed automatic paper cup forming machine with high production speed of 120pcs/min is used to manufacture variety of paper cup with capacity of 1~16oz(29~464ml), which is widely applied to cola cup, coffee cup, milk tea cup, ice cream cup, mild cup, etc.

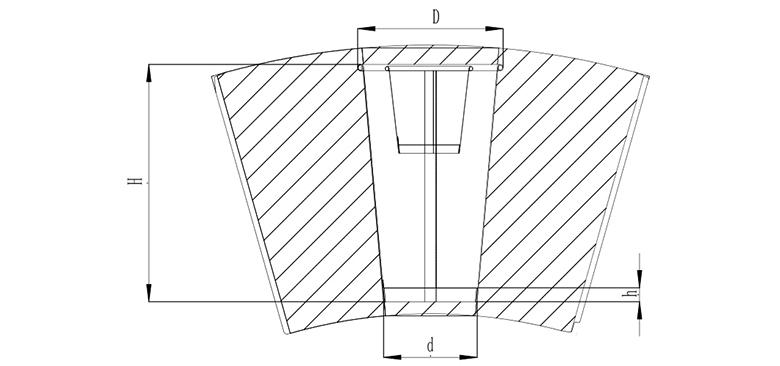

H: 40-136h: 3-15D: 40-90d: 30-75
Parameter
Paper cup capacity
1-16 OZ
Paper cup dimension
(D)φ40-90mm (H) 40-135mm (d)φ30-75mm (h)3-15mm
Production speed
80-120pcs/min
Weight
5300 kg
Power supply
three-phase 380V
Total power
21KW
Air consumption
0.4cube/min
Dimension of machine
L3750*W1300*H1800mm
Dimension of collecting table
Paper gram weight
210-350gsm(optional)
Paper type
single PE/double PE(optional)
Testing equipment
ordered separately
Paper sheet conveyor
ordered separately
Control panel
inch
Paper bowl forming process
Rolling paper sheetSide seam heating Sidewall paper conglutinating Bottom paper feeding Body cup transferring by transfer arm First bottom preheatingSecond bottom main heating Bottom-cup oil silicon lubrication Bottom curling Bottom of paper cup conglutinating Top-cup oil silicon lubricationKnurling bottom Curling top cup Photo detection Discharge of finished cup
Details of Middle Speed Automatic Paper Cup Forming Machine
Molds
Gear transmission device
Control cabinet
Paper money mold control system
Paper sheet feeding system

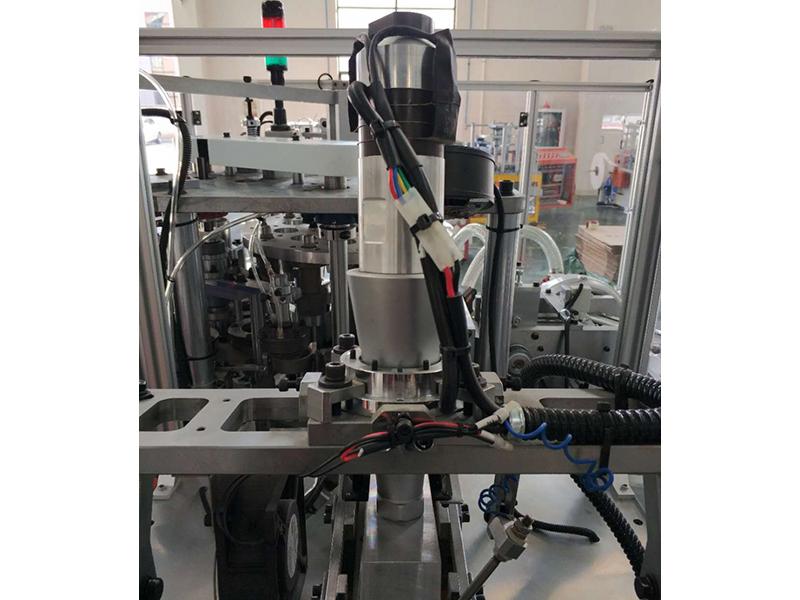

Ultrasonic heating device for side wall sealing and conglutination of fan-shaped paper sheet
Feature
1. Integral type mould base frame
Most of equipment adopt non-integral type mould base frame structure and have the problem of less enough precision. Discover Machinery adopts integral type mould base frame design, which has very high precision and longer service life.
2. Manipulator cup transferring mechanism
Traditionally, paper cup adopts free-falling method in the machining process. Now, we improve this method with three clear steps of cup receiving, overturning and cup lifting, which can improve production rate and stability during the manufacturing process greatly.
3. Gear transmission
The paper container forming machine adopts gear transmission mechanism and is not easy to dislocated. It is beneficial for more stable working state especially for continuous production.
4. Open-type indexing box
Our paper container machine is equipped with open-type indexing box, which is featured as higher precision, quicker speed, and also more convenient for maintenance.
5. Paper cup bottom heating system
As we all know, bottom heating before curling and forming of paper cup is a very important procedure. We adopt Switzerland Leister heating device ensuring heating process is very stable.
6. Oil lubricating system
In order to ensure paper cup machine in good lubrication condition in the working process, timing and quantitative lubricating oil can be realized by automatic program controlling.
7. Integral base frame design
The whole machine is designed with box structure and is easy for operation and maintenance.
Dimension diagram
Our company is specialized in manufacturing disposable paper cup/container machines, we are a leading recycle paper container manufacturer, offer paper cup forming machine for coffee cup makers and water paper cup makers, and offer paper dining bowl making machine since 1998, we have made completed lines for making quality disposable paper cup and bowl machines, also we are offering the custom molds to match the machines.
